Synchronizer Ring Processing Automation Equipment for Controlled Heat Treatment
Synchronizer ring processing automation equipment is designed for preheating, heat treatment, cabinet furnace processing, material transfer, and production line integration in synchronizer ring manufacturing. It helps factories improve temperature consistency, reduce manual handling, stabilize process quality, and support repeatable transmission component production.
Product Description
KYD synchronizer ring processing automation equipment is developed for manufacturers that need customized preheating furnaces, cabinet furnaces, heating systems, conveyors, loading and unloading stations, fixtures, and integrated production cells for synchronizer ring processing. The equipment can support controlled preheating, staged heating, holding, transfer, cooling, inspection, and downstream handling according to the customer’s process route.
Each system is designed according to the synchronizer ring material, part size, batch quantity, heating temperature, holding time, production capacity, workshop layout, safety requirements, and destination country standards. KYD provides engineering review, layout planning, mechanical design, electrical control, manufacturing, assembly, debugging, and export support for synchronizer ring automation projects.
Main Features
- Customized process layout for synchronizer ring preheating, cabinet furnace treatment, conveying, cooling, and transfer.
- Integrated preheating furnace, cabinet furnace, conveyor, fixture, loading station, control cabinet, and safety protection modules.
- PLC control, HMI operation, temperature control, sensor feedback, alarm display, and production status monitoring are available.
- Designed for stable heating conditions, improved batch consistency, easier operation, and reduced manual transfer work.
- Voltage, furnace size, heating zones, fixture layout, automation level, and production capacity can be customized.
Quick Configuration
- Equipment typeSynchronizer ring automation line
- WorkpieceSynchronizer ring / gear ring
- Line modeStandalone or integrated system
- ControlPLC / HMI / temperature control
- CustomizationFurnace, fixture, capacity
Technical parameters
Synchronizer Ring Processing Automation Equipment Specifications
The following parameters are for reference. KYD can customize the synchronizer ring processing automation equipment according to ring size, material, heating process, target capacity, workshop layout, automation level, and export requirements.
| Applicable workpiece | Synchronizer ring, gear ring, transmission ring component, precision machined ring, heat-treated automotive part |
| System scope | Preheating, cabinet furnace heating, holding, loading, unloading, conveying, cooling, inspection, or custom process integration |
| Production capacity | Designed according to takt time, shift output, ring size, heating cycle, furnace volume, and automation level |
| Main modules | Preheating furnace, cabinet furnace, conveyor line, fixture or tray system, loading station, temperature control system, control cabinet |
| Control system | PLC control, HMI interface, temperature controller, sensor detection, motor control, alarm system, optional data collection |
| Safety design | Guarding, emergency stop, interlock, warning light, over-temperature protection, exhaust interface, and customized protection layout |
| Power supply | 380V / 50Hz standard, voltage can be customized for export projects |
| Optional modules | Robot loading, automatic tray transfer, vision inspection, barcode system, MES connection, cooling station, exhaust treatment, remote support interface |
Application scenarios
Where Synchronizer Ring Processing Automation Equipment Is Used

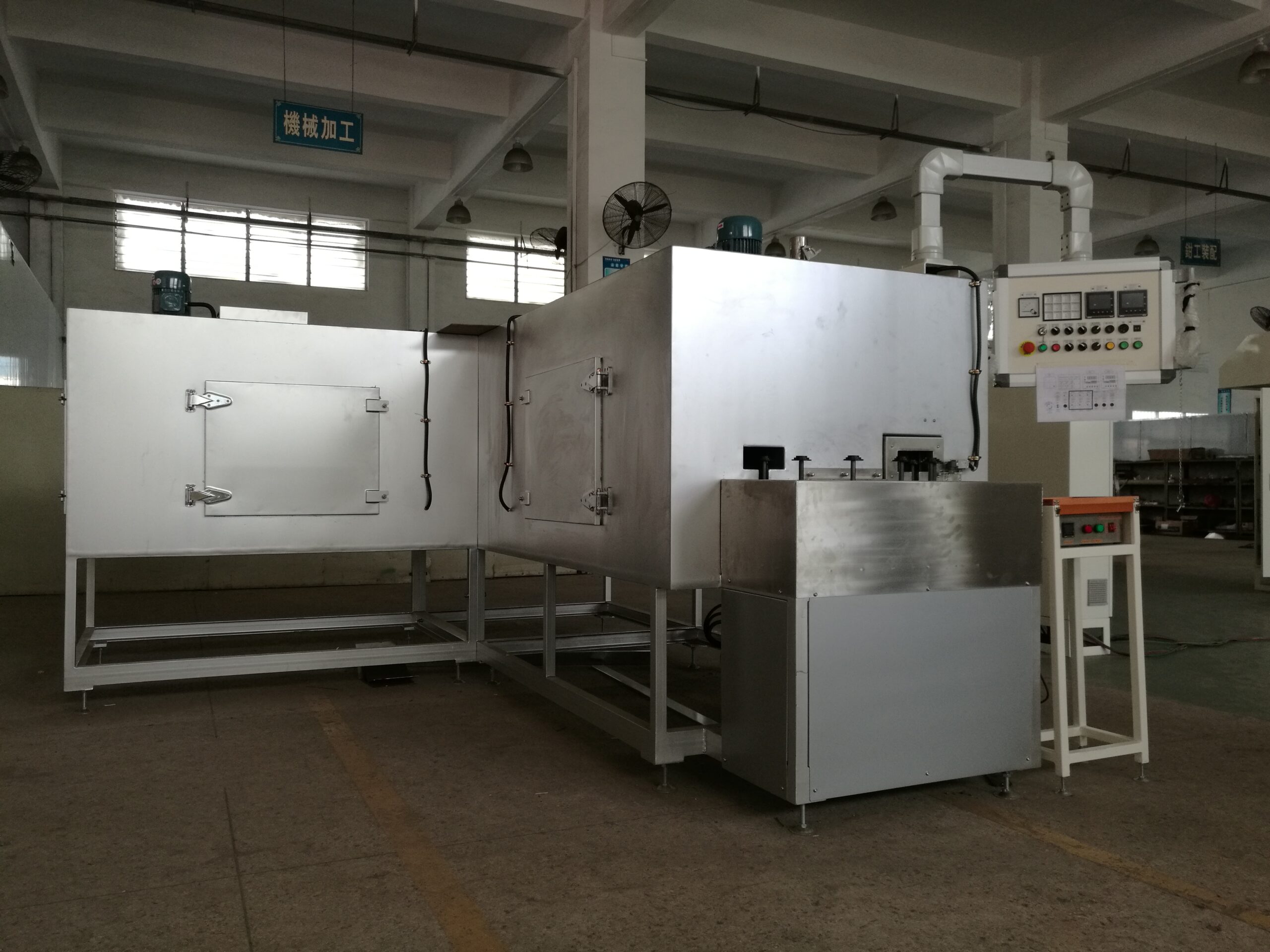

Synchronizer Ring Preheating
Used for controlled preheating, temperature preparation, and process connection before heat treatment or downstream ring processing.

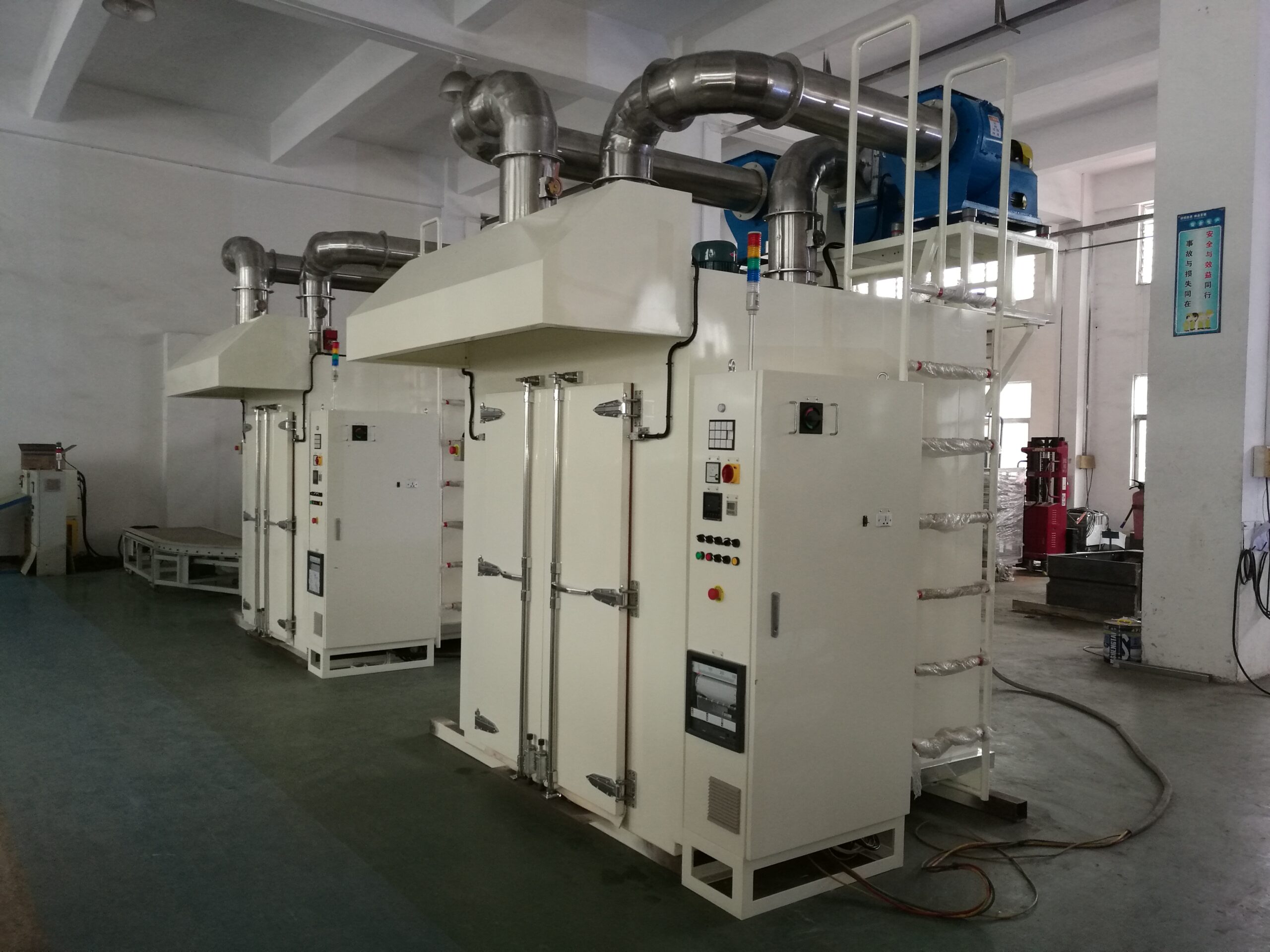

Cabinet Furnace Processing
Suitable for synchronizer ring cabinet furnaces, batch heating, holding treatment, and temperature-controlled production stages.
Integrated Transmission Parts Lines
Can be integrated with conveyors, loading units, tray systems, heating equipment, cooling stations, inspection stations, and automatic loading or unloading systems.
