Titanium Alloy Processing Automation Equipment for Wire Cutting, Stripping, and Winding
Titanium alloy processing automation equipment is designed for controlled cutting, stripping, winding, positioning, and transfer of titanium alloy wire or related high-value metal materials. It helps manufacturers improve length accuracy, process repeatability, and material handling consistency.
Product Description
KYD titanium alloy processing automation equipment is developed for manufacturers that need customized titanium alloy wire cutting machines, wire stripping machines, winding machines, feeding units, guide mechanisms, clamping devices, measuring systems, and integrated production cells. The equipment can support wire feeding, length measurement, cutting, stripping, winding, collection, transfer, and downstream handling according to the customer’s process route.
Each system is designed according to the titanium alloy material, wire diameter, cutting length, stripping length, winding diameter, surface protection requirement, production capacity, workshop layout, safety requirements, and destination country standards. KYD provides engineering review, fixture planning, mechanical design, electrical control, manufacturing, assembly, debugging, and export support for titanium alloy processing automation projects.
Main Features
- Customized feeding and fixture design based on titanium alloy wire diameter, surface protection requirement, cutting length, and winding route.
- Integrated wire feeding, measuring, cutting, stripping, winding, clamping, collection, inspection connection, and control modules.
- Servo or motor drive, sensors, length counting, PLC control, HMI operation, safety protection, and optional data recording are available.
- Designed for stable material handling, accurate length control, reduced manual contact, easier operation, and consistent titanium alloy wire processing quality.
- Voltage, machine dimensions, cutting range, stripping method, winding fixture, and automation level can be customized.
Quick Configuration
- Equipment typeWire processing line
- WorkpieceTitanium alloy wire
- Line modeStandalone or integrated system
- ControlPLC / HMI / servo control
- CustomizationCutting, stripping, winding
Technical parameters
Titanium Alloy Processing Automation Equipment Specifications
The following parameters are for reference. KYD can customize the titanium alloy processing equipment according to wire diameter, cutting length, stripping requirement, winding method, capacity target, workshop layout, and export requirements.
| Applicable workpiece | Titanium alloy wire, high-value metal wire, precision wire materials, small rods, and custom wire-like components |
| System scope | Wire feeding, length measuring, cutting, stripping, winding, clamping, collecting, inspection connection, and transfer |
| Production capacity | Designed according to wire diameter, cutting length, stripping cycle, winding turns, line speed, and automation level |
| Main modules | Feeding unit, guide mechanism, cutting machine, stripping machine, winding unit, clamping device, sensor system, control cabinet |
| Control system | PLC control, HMI interface, servo or motor control, length counting, sensor detection, alarm system, optional data recording |
| Safety design | Guarding, emergency stop, interlock, protective cover, warning light, and customized protection layout |
| Power supply | 380V / 50Hz standard, voltage can be customized for export projects |
| Optional modules | Automatic spool loading, surface protection guide, vision inspection, barcode tracking, data export, and remote support interface |
Application scenarios
Where Titanium Alloy Processing Automation Equipment Is Used

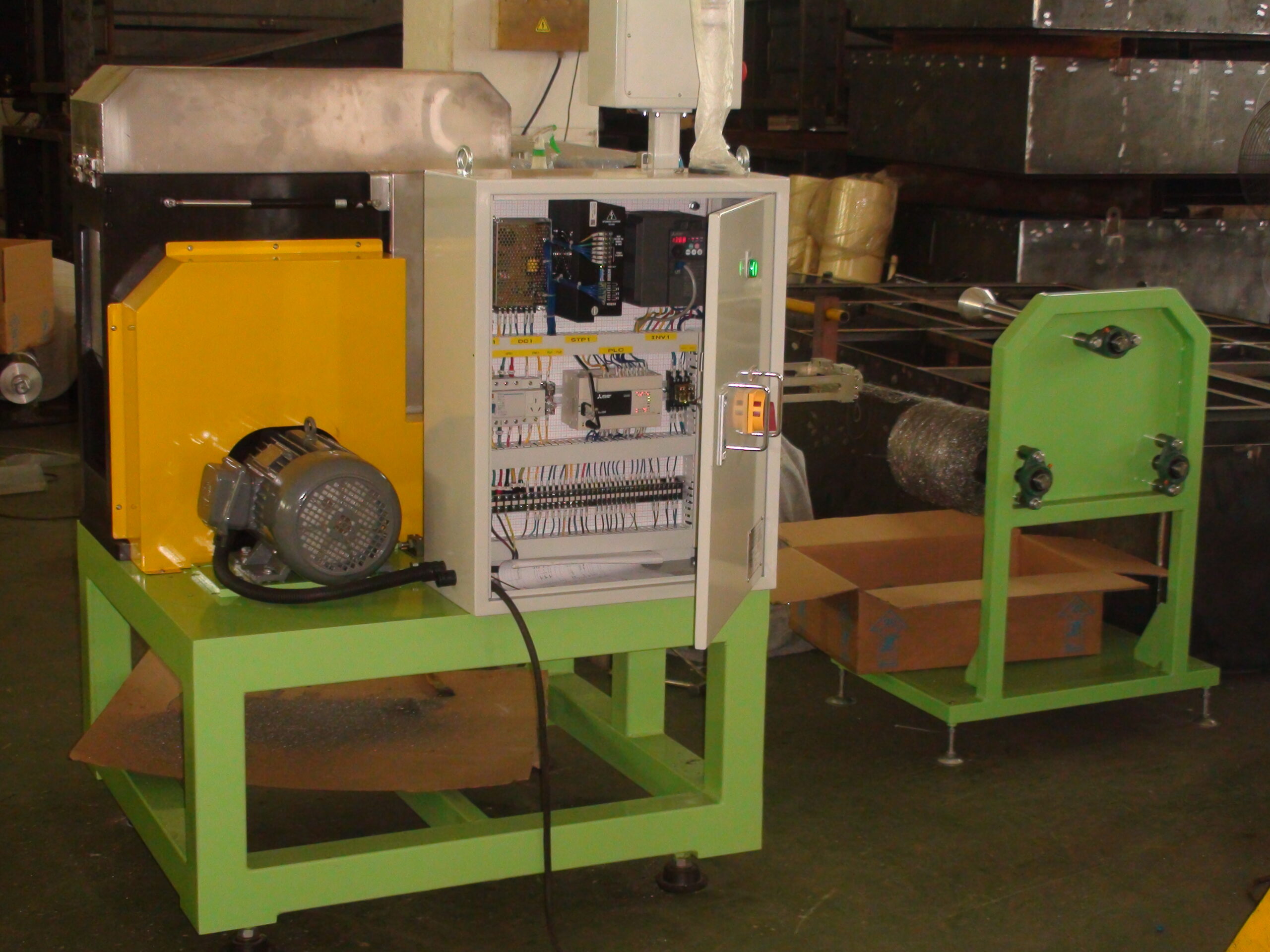

Titanium Wire Cutting
Used for feeding, measuring, and cutting titanium alloy wire to controlled lengths before downstream forming or assembly.

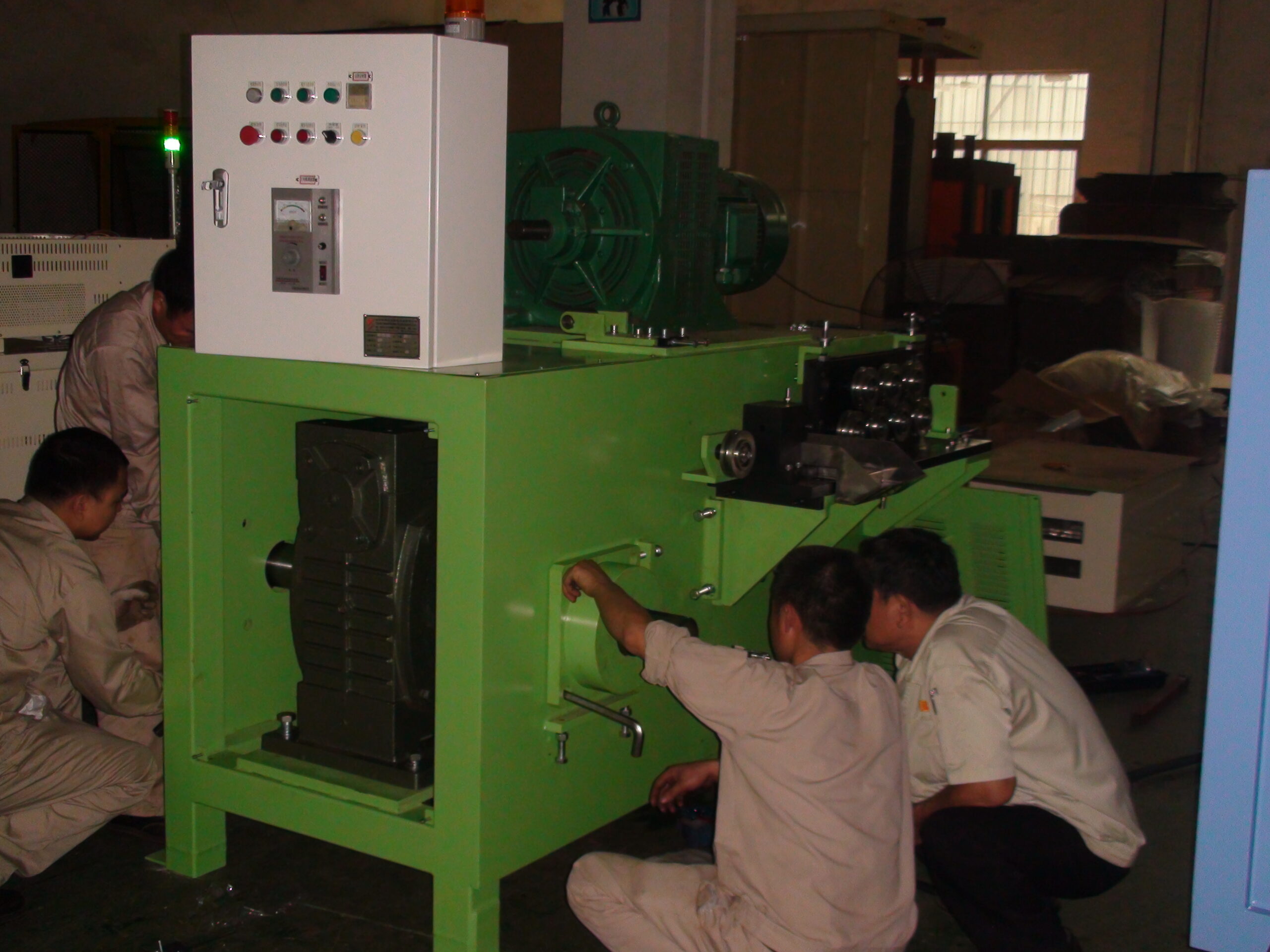

Wire Stripping and Preparation
Suitable for titanium alloy wire stripping, end preparation, clamping, and inspection connection where repeatability is important.

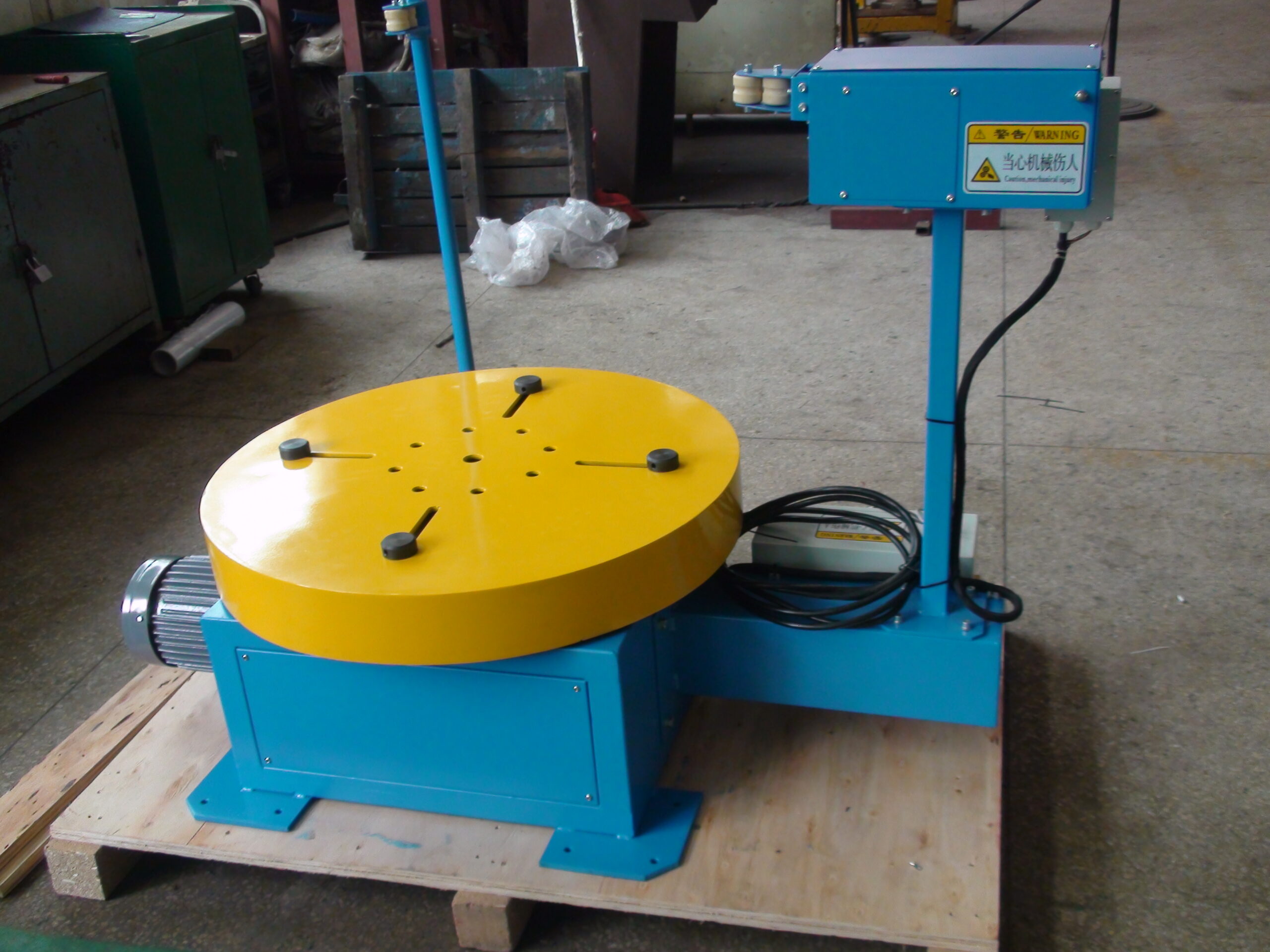

Winding and Collection Lines
Can be integrated with winding machines, transfer units, inspection stations, collection trays, robot handling, and production data management.
Photo gallery
