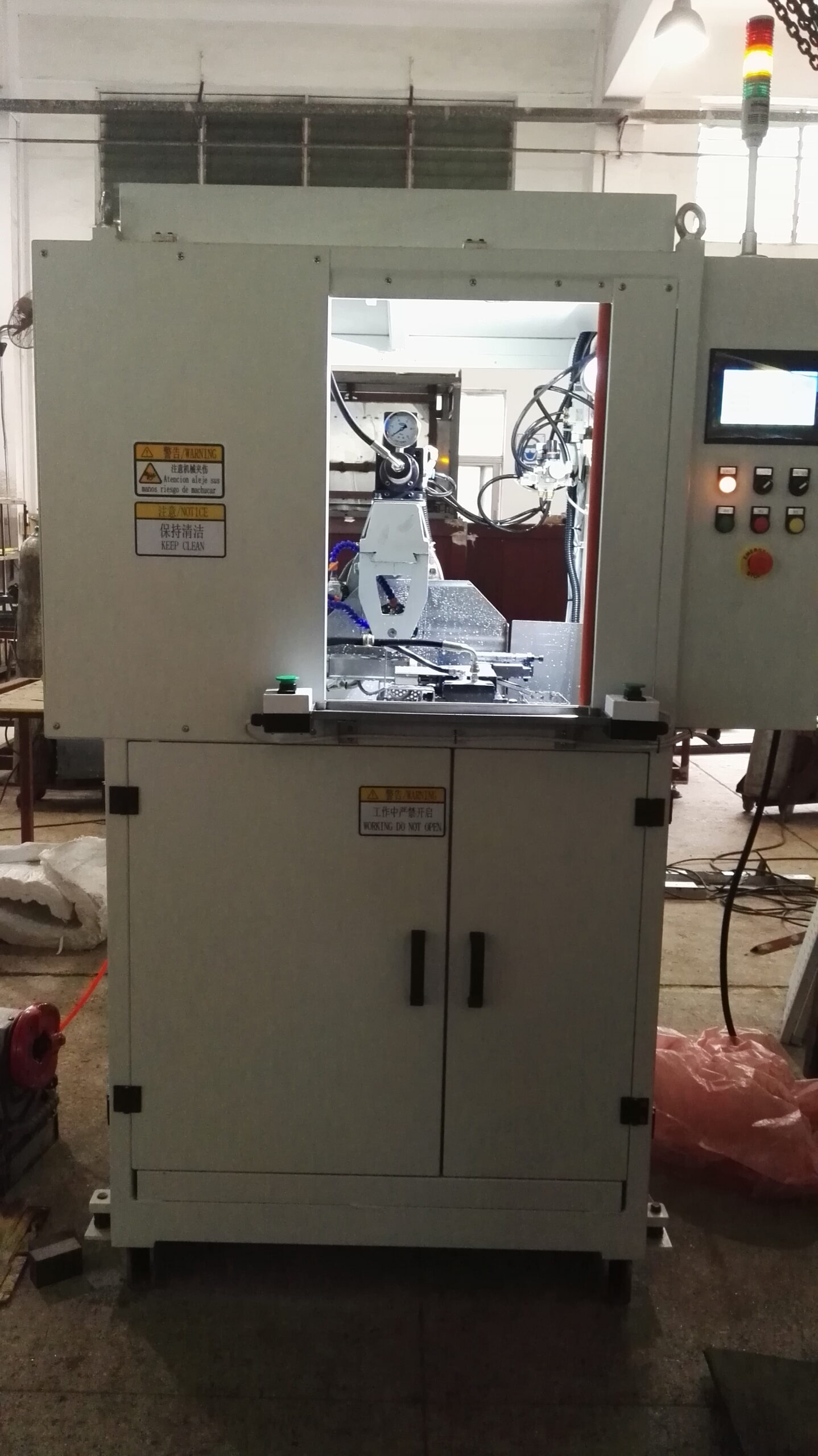

Steering Wheel Linkage Slotting Machine for Accurate Groove Machining
Steering wheel linkage slotting machines are designed for controlled groove cutting, slot forming, and positioning work on steering linkage components. They help improve machining consistency, reduce manual rework, and prepare parts for reliable downstream assembly.
Product Description
KYD steering wheel linkage slotting machine is developed for automotive component manufacturers that need customized slotting units, precision fixtures, clamping systems, feeding mechanisms, cutting heads, chip collection, safety guarding, and automated loading or unloading options. The equipment can support groove machining, edge slotting, positioning, deburring preparation, and process transfer according to the customer’s part drawing.
Each system is designed according to the linkage material, slot size, cutting depth, tolerance requirement, clamping position, production takt time, workshop layout, safety requirements, and destination country standards. KYD provides engineering review, fixture planning, mechanical design, electrical control, manufacturing, assembly, debugging, and export support for steering linkage slotting projects.
Main Features
- Customized fixture and clamping structure based on linkage shape, slot position, cutting direction, and tolerance requirement.
- Stable cutting motion supports repeatable groove depth, smooth slot edges, and consistent part positioning.
- Cutting unit, pneumatic or servo feeding, chip collection, safety guarding, PLC control, and HMI operation are available.
- Designed for easier operation, reduced manual machining variation, quick fixture change, and stable automotive part production.
- Machine dimensions, cutting stroke, tooling, loading method, and control functions can be customized.
Quick Configuration
- Equipment typeSlotting machine
- WorkpieceSteering linkage part
- Line modeStandalone or integrated
- ControlPLC / HMI / optional servo
- CustomizationFixture, cutter, stroke
Technical parameters
Steering Wheel Linkage Slotting Machine Specifications
The following parameters are for reference. KYD can customize the slotting machine according to linkage drawing, material, groove size, cutting depth, target takt time, loading method, and export requirements.
| Applicable workpiece | Steering wheel linkage parts, automotive connecting parts, small metal links, machined bars, and custom linkage components |
| Process scope | Clamping, positioning, slotting, groove cutting, chip removal, unloading, and optional deburring connection |
| Production capacity | Designed according to slot length, cutting depth, material hardness, fixture quantity, and takt time |
| Main modules | Machine frame, precision fixture, cutting head, feed unit, clamping system, chip collection area, control cabinet |
| Control system | PLC control, HMI interface, motor or servo control, sensor detection, alarm system, optional data collection |
| Safety design | Guarding, emergency stop, interlock, protective cover, warning light, and customized safety layout |
| Power supply | 380V / 50Hz standard, voltage can be customized for export projects |
| Optional modules | Automatic loading, rotary fixture, tool wear reminder, dust or chip extraction, inspection station, and barcode tracking |
Application scenarios
Where Steering Wheel Linkage Slotting Machines Are Used
Automotive Steering Parts Machining
Used for forming slots or grooves in steering linkage components before assembly, coating, or final inspection.
Precision Fixture-Based Cutting
Suitable for repeatable machining of small metal parts that require stable clamping, controlled stroke, and accurate cutting depth.
Automated Machining Cells
Can be integrated with conveyors, loading units, robot handling, deburring machines, inspection stations, and production data management.
