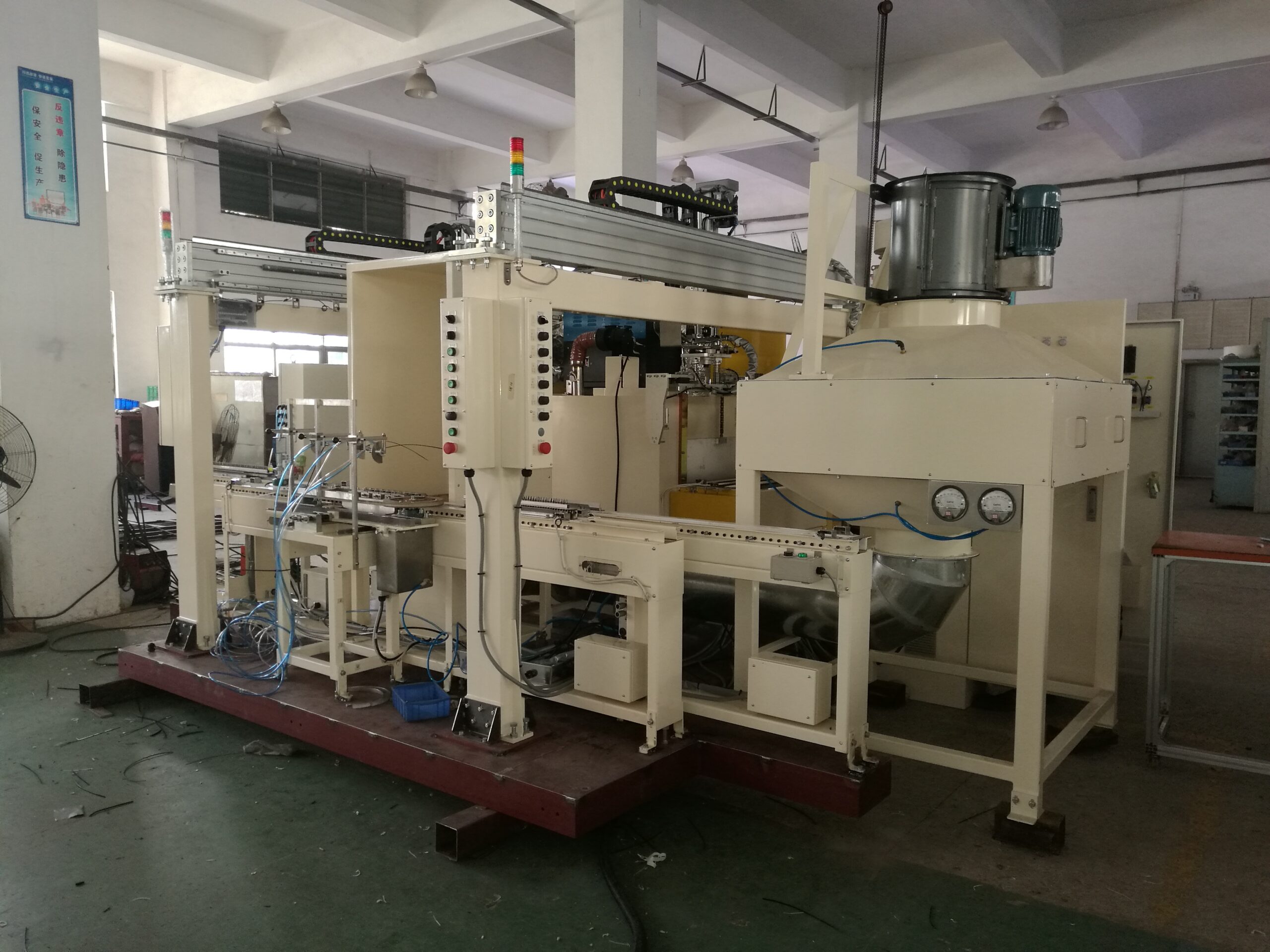

Small Shaft Processing Automatic Coating Equipment for Consistent Surface Finishing
Small shaft processing automatic coating equipment is designed for coating, conveying, drying, curing, and production line integration for small shaft components. It helps factories improve coating consistency, reduce manual handling, control production rhythm, and build a stable automated surface treatment process.
Product Description
KYD small shaft processing automatic coating equipment is developed for manufacturers that need customized coating systems, automatic loading and unloading, shaft positioning fixtures, conveyors, drying ovens, curing units, inspection stations, and integrated production cells for small shaft parts. The equipment can support surface coating, oiling, protective film application, controlled drying, transfer, cooling, inspection, and downstream handling according to the customer’s process route.
Each system is designed according to the small shaft material, diameter, length, coating area, coating material, production capacity, workshop layout, safety requirements, and destination country standards. KYD provides engineering review, layout planning, mechanical design, electrical control, manufacturing, assembly, debugging, and export support for small shaft automatic coating projects.
Main Features
- Customized process layout for small shaft loading, positioning, coating, conveying, drying, curing, and unloading.
- Integrated coating unit, shaft fixture, conveyor, drying oven, loading station, control cabinet, and safety protection modules.
- PLC control, HMI operation, sensor feedback, temperature control, alarm display, and production status monitoring are available.
- Designed for stable coating coverage, reduced manual labor, improved surface consistency, and repeatable production quality.
- Voltage, machine dimensions, coating method, fixture layout, automation level, and production capacity can be customized.
Quick Configuration
- Equipment typeAutomatic coating line
- WorkpieceSmall shaft / precision shaft
- Line modeStandalone or integrated system
- ControlPLC / HMI / sensors
- CustomizationFixture, coating, capacity
Technical parameters
Small Shaft Processing Automatic Coating Equipment Specifications
The following parameters are for reference. KYD can customize the small shaft processing automatic coating equipment according to shaft size, coating material, coating area, drying process, target capacity, workshop layout, automation level, and export requirements.
| Applicable workpiece | Small shaft, precision shaft, metal shaft, automotive shaft part, machined cylindrical component, coated industrial shaft |
| System scope | Loading, positioning, coating, oiling, conveying, drying, curing, cooling, inspection, unloading, or custom process integration |
| Production capacity | Designed according to takt time, shift output, shaft size, coating cycle, drying time, and automation level |
| Main modules | Coating unit, conveyor line, shaft fixture, loading station, drying oven, curing unit, inspection station, control cabinet |
| Control system | PLC control, HMI interface, sensor detection, motor control, temperature control, alarm system, optional data collection |
| Safety design | Guarding, emergency stop, interlock, warning light, safety sensor, exhaust interface, and customized protection layout |
| Power supply | 380V / 50Hz standard, voltage can be customized for export projects |
| Optional modules | Robot loading, vision inspection, automatic sorting, barcode system, MES connection, exhaust treatment, drying oven, remote support interface |
Application scenarios
Where Small Shaft Automatic Coating Equipment Is Used
Small Shaft Surface Coating
Used for automatic coating, oiling, protective film application, and controlled surface treatment of small shaft components.
Drying and Curing Process
Suitable for small shaft coating lines that combine coating, drying oven, curing unit, cooling, transfer, and process control equipment.
Integrated Shaft Production Lines
Can be integrated with conveyors, fixtures, automatic loading units, robot handling, inspection stations, sorting systems, and automated production data management.
