Fiber Unwinding Machine for Stable Roll Feeding and Tension Control
Fiber unwinding machines are designed to unwind fiber rolls, web materials, films, fabrics, or composite sheets with stable tension and controlled roll handling. They help keep the material flat, aligned, and ready for downstream coating, cutting, laminating, or forming processes.
Product Description

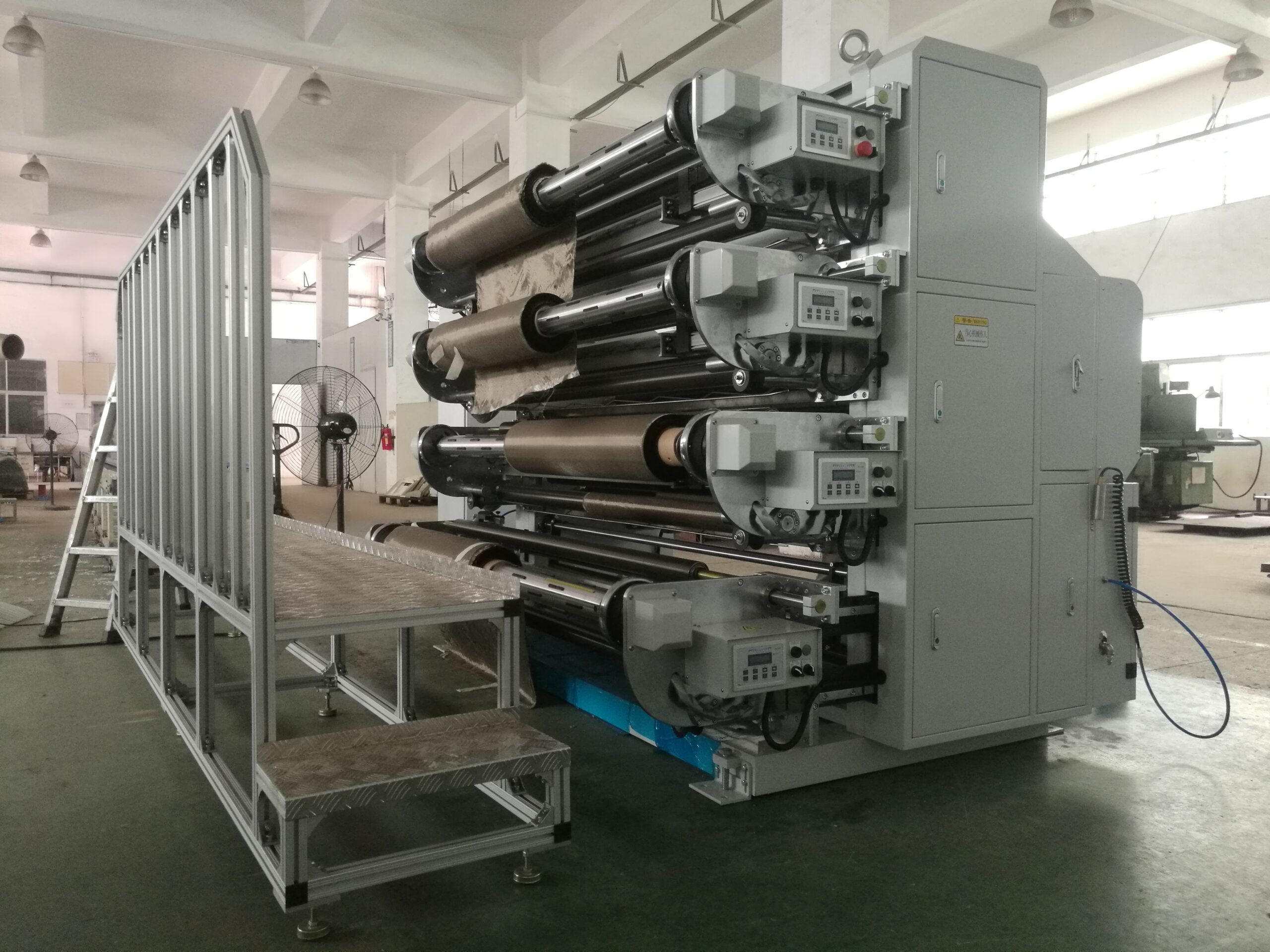

KYD fiber unwinding machine is developed for manufacturers that need customized multi-roll unwinding structures, roll supports, tension control, guiding rollers, edge alignment, drive systems, braking units, and downstream machine interfaces. The equipment can support five-roll fiber unwinding, material feeding, tension adjustment, web guiding, buffering, and transfer according to the customer’s production process.
Each system is designed according to the fiber material, roll width, roll diameter, web tension, feeding speed, alignment requirement, production capacity, workshop layout, safety requirements, and destination country standards. KYD provides engineering review, layout planning, mechanical design, electrical control, manufacturing, assembly, debugging, and export support for fiber unwinding projects.
Main Features
- Customized unwinding structure based on roll width, roll diameter, material type, tension range, and downstream process requirement.
- Stable roll support, guided feeding, tension adjustment, speed synchronization, and optional edge alignment.
- Motor drive, brake control, sensors, guide rollers, PLC control, HMI operation, and safety protection are available.
- Designed for smooth material release, reduced wrinkles, stable tension, easier roll change, and consistent downstream feeding.
- Voltage, roll quantity, machine width, drive mode, tension control, and interface signals can be customized.
Quick Configuration
- Equipment typeFiber unwinder
- WorkpieceFiber roll / web material
- Line modeStandalone or line-fed
- ControlPLC / HMI / tension control
- CustomizationRoll width, tension, speed
Technical parameters
Fiber Unwinding Machine Specifications
The following parameters are for reference. KYD can customize the fiber unwinding machine according to roll material, width, diameter, tension requirement, feeding speed, downstream interface, and export requirements.
| Applicable workpiece | Fiber rolls, fabric rolls, composite sheets, nonwoven materials, films, web materials, and custom roll-fed substrates |
| System scope | Roll loading, unwinding, tension adjustment, guiding, edge alignment option, buffering, speed synchronization, and downstream feeding |
| Production capacity | Designed according to roll width, roll diameter, line speed, tension range, and automation level |
| Main modules | Unwinding frame, roll shaft or support, guide roller, drive or brake unit, tension sensor, edge guide option, control cabinet |
| Control system | PLC control, HMI interface, tension feedback, motor control, sensor detection, alarm system, optional line communication |
| Safety design | Guarding, emergency stop, roll locking, interlock, warning light, and customized protection layout |
| Power supply | 380V / 50Hz standard, voltage can be customized for export projects |
| Optional modules | Automatic roll loading, splice table, web guide, dancer roller, dust removal, barcode tracking, and remote support interface |
Application scenarios
Where Fiber Unwinding Machines Are Used
Roll Material Feeding
Used for stable unwinding and feeding of fiber, fabric, film, and composite web materials into downstream equipment.
Coating and Laminating Lines
Suitable for production lines that require controlled tension, flat material transport, and synchronized feeding speed.
Integrated Web Handling Systems
Can be integrated with cutters, coating machines, dryers, laminators, inspection stations, and automatic roll handling systems.
